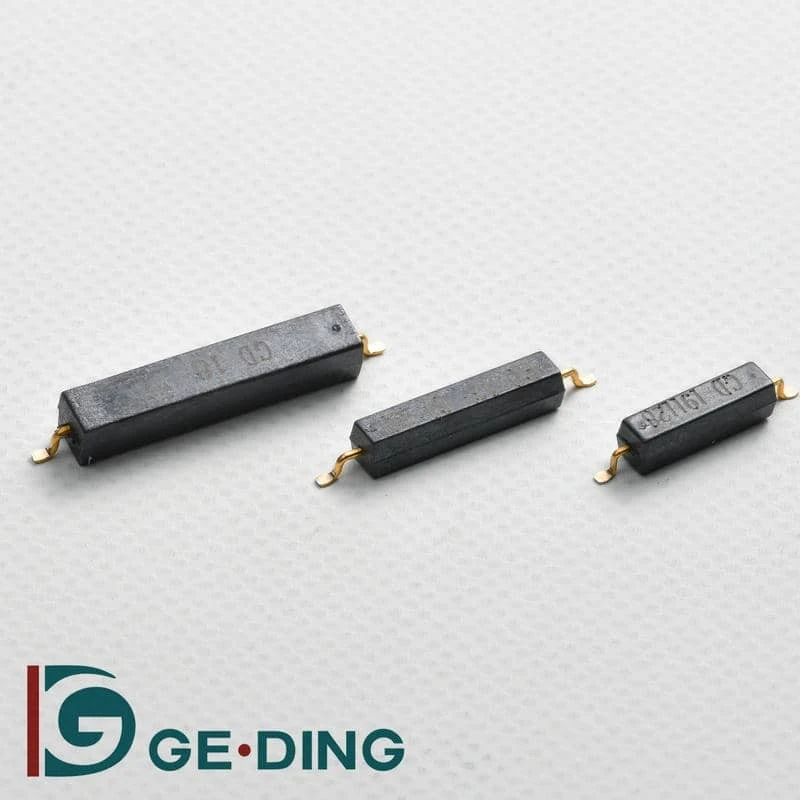

Nyob rau hauv daim ntawv thov uas sib nqus sensing yuav tsum tau embedded ncaj qha mus rau hauv lub PCB tsim, lub SMD reed hloov muaj ib tug tswv yim, qhov chaw -txuag, thiab ntau lawm- tus phooj ywg kev daws teeb meem. Nws nto -mount pob tso cai ncaj qha soldering mus rau PCB thaum lub sij hawm tus txheej txheem SMT txheej txheem, tshem tawm qhov yuav tsum tau rau ntxiv brackets, thaiv, los yog mechanical mounting kauj ruam.
Ib qho SMD Reed Hloov yog iav -encapsulated hermetic hloov uas muaj cov roj inert, muaj ob lub ferromagnetic reeds uas kaw thaum ua kom sib nqus. Ntim rau saum npoo-mount thev naus laus zis (SMT), nws txhawb kev sib dhos ua haujlwm thiab ua kom ruaj khov, tiv tauj-raws li kev txheeb xyuas qhov sib thooj yam tsis muaj lub zog rub hauv nws lub xeev so.
Los ntawm kev sib koom ua ke ncaj qha mus rau PCB, SMD reed hloov ua kom muaj kev sib raug zoo, txo lub sijhawm sib dhos, thiab txhim kho cov khoom sib xws. Nws yog dav siv hauv cov ntawv tswj kev nkag, cov ntsuas ntsuas ntse, cov cuab yeej kho mob nqa tau, cov khoom siv hluav taws xob, thiab cov khoom siv tswj kev lag luam compact uas PCB-raws li kev sib dhos yog tus qauv.
Piv nrog rau los ntawm - qhov reed keyboards lossis cais cov xaim sensors, SMD reed keyboards ua kom yooj yim rau kev tsim, txo tag nrho qhov siab ntawm cov khoom, thiab txhawb kev tuaj yeem tuaj yeem xaiv-thiab- qhov chaw thiab cov txheej txheem rov ua dua.
Muaj nyob rau hauv ntau pob ntau thiab tsawg, qib rhiab heev, thiab cov ntaub ntawv tiv tauj, thiab nrog kub -plated leads rau zoo solderability, SMD reed hloov tuaj yeem hloov kho kom haum rau PCB layouts thiab daim ntawv thov yuav tsum tau thaum tswj kev hloov pauv siab.
Xaiv lub rooj
|
Tshooj No |
Dimension |
Kev ntsuas |
Hloov tam sim no |
Hloov Voltage |
Kev tawg Voltage |
Ntim |
Circuit |
|
|
|
UA-123 |
L12.3*W2.3*H2.3 |
1w |
0.1 |
24 VDC |
110VAC ua 150 VDC |
Loj |
Nquag Qhib (NO)
|
|
2500pcs / daim kab xev |
||||||||
|
|
GPS-11-SMD |
L16.4*W2.3*H2.3 |
10w |
0.5 |
100 |
130 VAC 180 VDC |
Loj |
|
|
2000pcs / daim kab xev |
||||||||
|
|
GPS-16-SMD01 |
L20.2*W3*H3 |
1 |
200 |
Tsawg dua los yog sib npaug rau 15AT 160/220 ＞ 15 AT 180/250 |
Loj |
||
|
2000pcs / daim kab xev |
||||||||
|
|
PAB-164 |
L16.4*W1.8*H2.3 |
0.5 |
100 |
130 VAC 180 VDC |
Loj |
||
|
2500pcs / daim kab xev |
||||||||
|
|
CA-196 |
L19.6*W2.3*H2.7 |
1 |
100 |
Tsawg dua los yog sib npaug rau 15AT 160/220 ＞ 15 AT 180/250 |
Loj |
||
|
2500pcs / daim kab xev |
||||||||
|
Daim ntawv pov thawj |
Cov ntaub ntawv pov thawj nrog ROHS, REACH SVHC. |
Raws li ISO 9001, IATF16949 kev tswj hwm. |
||||||
Tuam txhab Taw Qhia
Daim ntawv siv
- Tsis txhob overheating thaum lub sij hawm soldering. Qhov kub thiab txias dhau los ntev ntev yuav ua rau muaj kab nrib pleb hauv cov iav encapsulation.
- Kev txiav txim siab ntawm pawg thawj coj saib: Tsis txhob tso qhov hloov mus ze rau qhov siab - cov kab tam sim no lossis cov chaw sib nqus muaj zog, vim tias lawv tuaj yeem cuam tshuam nrog kev hnov qhov tseeb.
- Kov nrog kev saib xyuas thaum lub sijhawm teeb tsa: Ib txwm tuav lub pob lub cev; zam kev siv cov kev ntxhov siab lossis sab siab ncaj qha rau lub khob raj.
- Cia thiab tuav: Tiv thaiv kom tsis txhob poob lossis cuam tshuam thaum thauj thiab khaws cia, vim tias micro- tawg tuaj yeem tshwm sim hauv lub khob iav.
FAQ
Q1: Dab tsi ntawm mounting koj txhawb?
A1: Peb muab SMD (kab xev-thiab-reel) rau automated SMT, nrog rau cov qauv xaim- txhuas thiab khoov- cov kev xaiv coj mus rau phau ntawv lossis siab dua - daim ntawv thov thauj khoom.
Q2: Puas tuaj yeem hloov pauv muaj sia nyob nthwv dej lossis reflow soldering?
A2: Yog lawm- cov txheej txheem ib txwm tuaj yeem tiv taus mus txog ≈280℃rau 3 vib nas this ua tsaug rau cov roj inert sealing.
Q3: Dab tsi ntawm ib puag ncig cuam tshuam rau kev ua haujlwm?
A3: Reed hloov qhov ntsuas kub hloov pauv, plua plav, thiab av noo zoo vim yog kev sib khi ntawm hermetic, tab sis rhiab rau cov neeg kho tshuab siab lossis kev co heev.
Q4: Lub neej expectancy ntev npaum li cas?
A4: Thaum lub teeb liab- theem loads, lub neej dhau ntau pua lab lub voj voog; siab loads txo lub neej expectancy.
Q5: Kuv yuav ua li cas thiaj li ua kom pom qhov deb thiab rhiab heev?
A5: Siv cov hlau nplaum uas muaj zog dua lossis ntau dua rhiab heev (qis AT ntsuas) thiab xyuas kom nruj nruj thiab tsawg wobble kom raug zoo dua.
